Wall Bushing Manufacturer | 10-35kV Feedthrough

Tailored resin chemistry balances temperature stability, rupture resistance, and mechanical strain for each application.
Comprehensive measurement and inspection systems guarantee precise dimensional accuracy and electrical performance.
Supports SF₆ or oil insulation systems, with optional voltage sensors for live status indication.

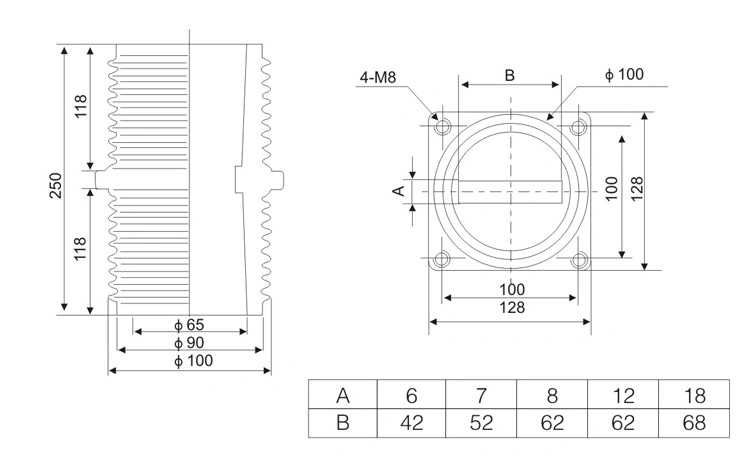

TG4-10Q/128 (100X100) 12kV

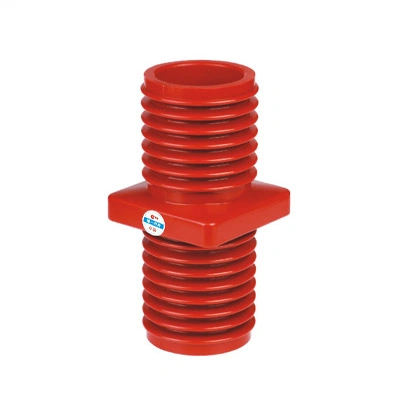

100X100 Epoxy Resin Wall Bushing

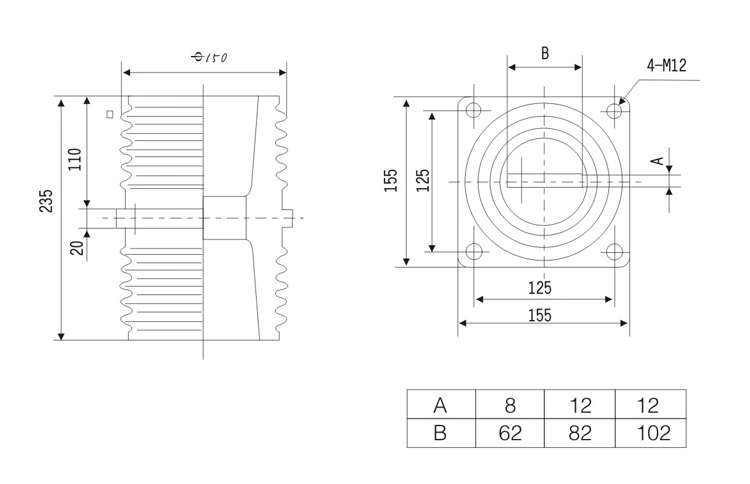

TG1-10Q/210 (125X125) 12kV

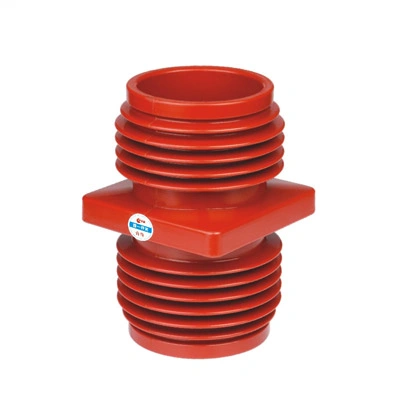

125X125 Epoxy Resin Wall Bushing

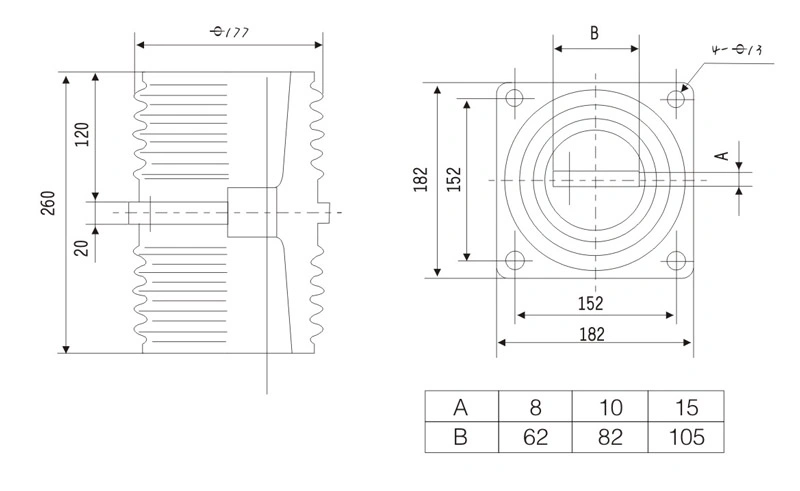

TG2-10Q/182(152X152) 12kV

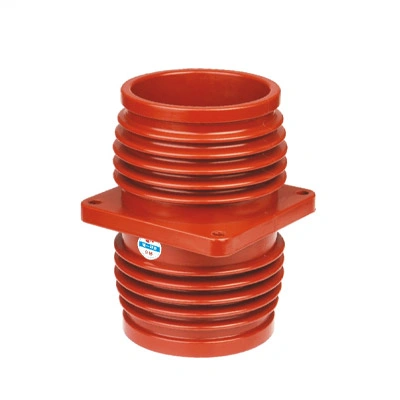

152X152 Epoxy Resin Wall Bushing

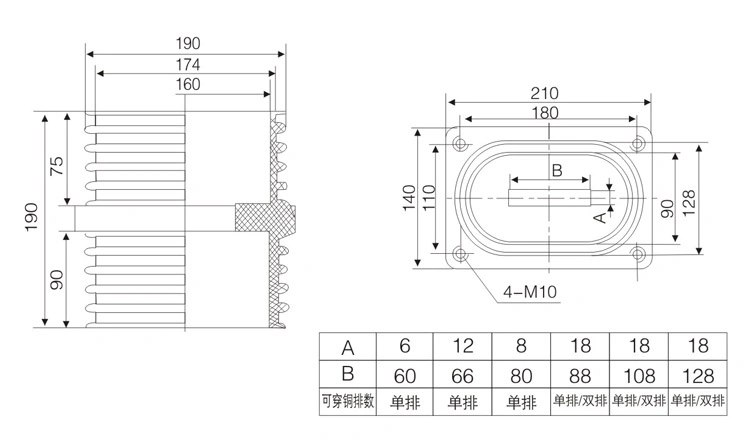

TG3-10Q/110X180 12kV

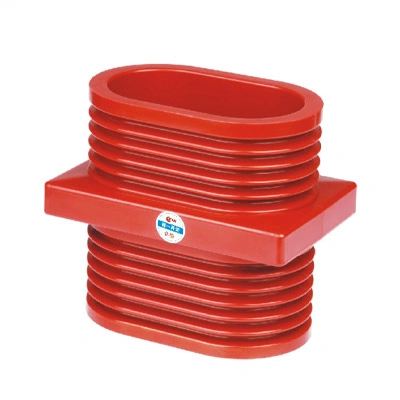

110X180 Epoxy Resin Wall Bushing

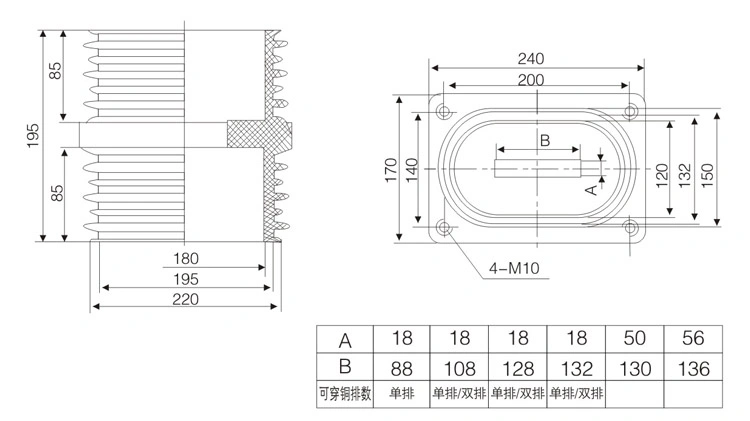

TG3-10Q/140X200 12kV

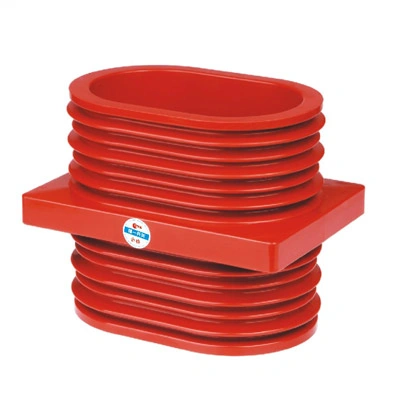

140X200 Epoxy Resin Wall Bushing

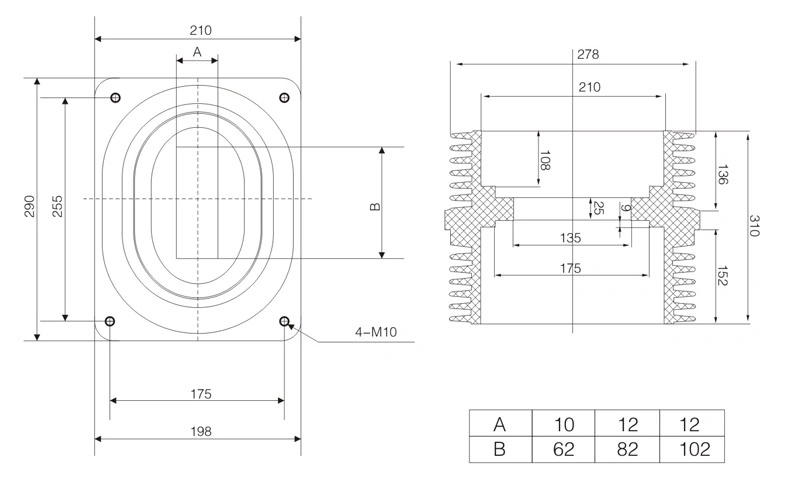

TG3-24Q/175x235 175x255 24kV

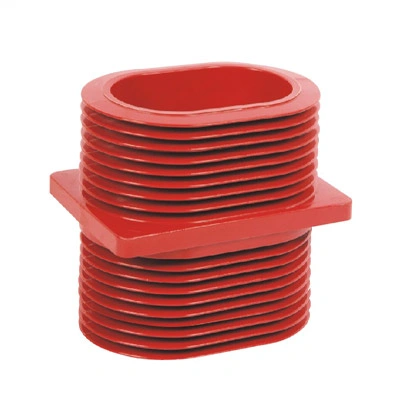

175x235 175x255 Epoxy Resin Wall Bushing

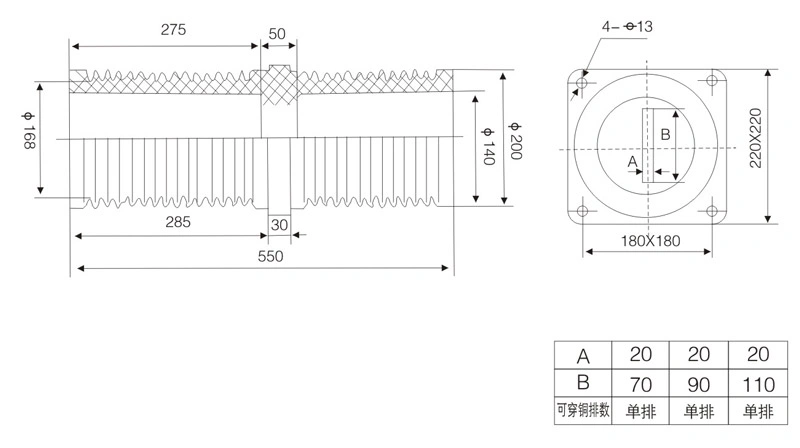

TG3-35Q/180X180 35kV

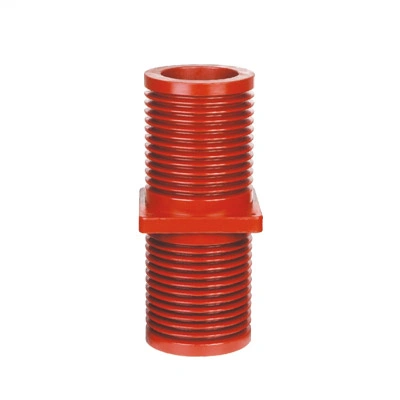

180X180 Epoxy Resin Wall Bushing

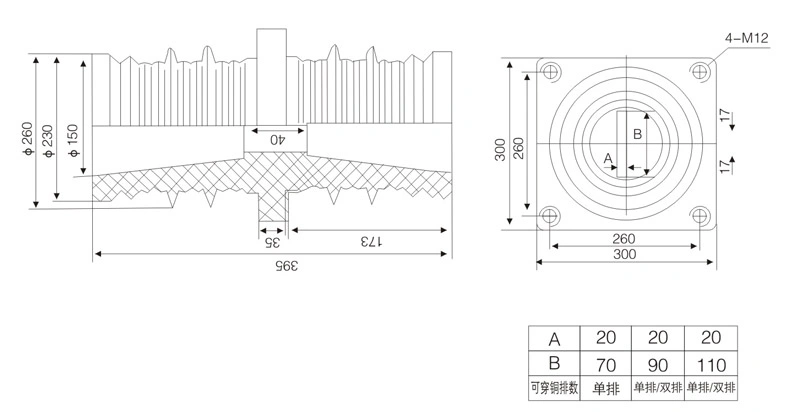

TG3-35Q/260X260 260X395 35kV

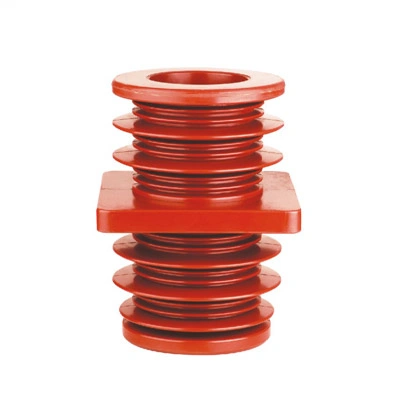

260X260 260X395 Epoxy Resin Wall Bushing (With Shielding)

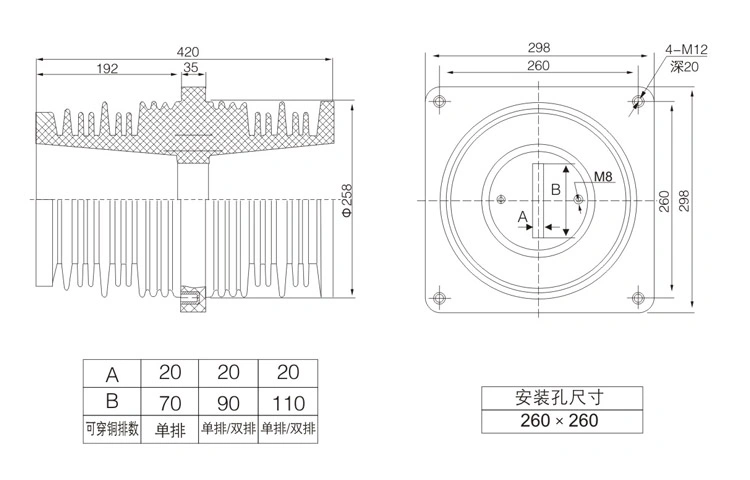

TG3-35Q/260X260 260X420 35kV

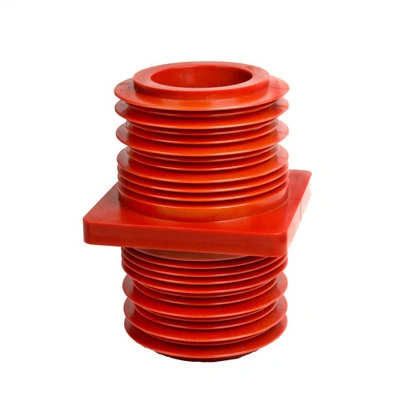

260X260 260X420 Epoxy Resin Wall Bushing (With Shielding)

Switchgear Insulation Wall Bushing Supplier

Every product is supported by comprehensive measurement and inspection systems, ensuring thorough professional assessment—critical for customized high voltage insulators. Beyond production expertise, FUYI develops specialized resin formulations to achieve the optimal balance of technical characteristics based on individual requirements, including temperature stability, application temperature range, rupture resistance, and mechanical strain. This ensures that both essential safety standards and long-term reliability are consistently delivered in power energy transmission applications.

Resources

Access Fuyi's technical documentation and FAQs to help you quickly select the right model and install with confidence.

Product Catalog

OEM Services

FAQ Related To Insulators

What is the maximum current rating for your wall bushings?

Our wall bushings are available from 630A up to 3150A. The 630A model is commonly used for ring main units and compact substations.

Can your bushings be used with SF6 gas insulation?

Yes. Our 630A single bushing and 202/235 series bushings are designed for both oil and SF6 gas insulation applications.

Do you offer bushings with built-in voltage sensors?

Yes. Our three-way bushing socket can be equipped with a voltage sensor for live display or detection functions.
