Switchgear Protection & Monitoring Devices | Live Display & Fault Indicator

Live Display & Fault Indicator

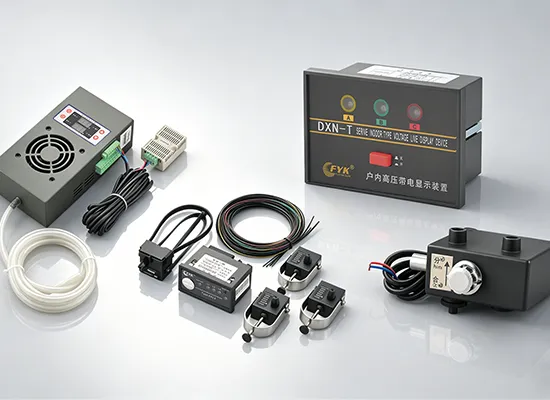

Switchgear protection devices – live displays, fault indicators, temperature controllers, smart dehumidifiers. 100% tested. Reliable monitoring and protection.

Live displays provide visible voltage presence indication
Fault indicators quickly locate short circuit or ground faults
Smart dehumidifiers protect enclosures from moisture damage

GET IN TOUCH

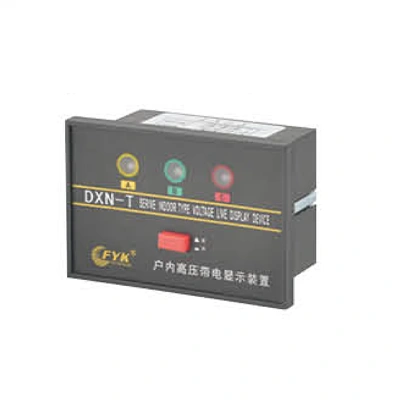

DXN-T

DXN-T(Q) Indoor High-Voltage Voltage Indicator (Live-Line Indicator)

L-6/T (L-6/Q with Switch)

L-6/T & L-6/Q (with Switch) Indoor High-Voltage Voltage Indicators

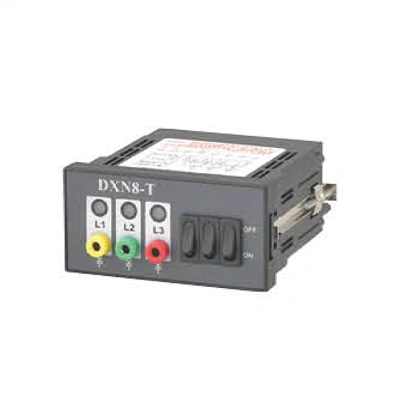

DXN8D-T(Q)

DXN8D-T(Q) Indoor High-Voltage Presence Indicating Device with Voltage Detection

Resources

Access Fuyi's technical documentation and FAQs to help you quickly select the right model and install with confidence.

Product Catalog

OEM Services

FAQ Related To Insulators

What is the primary function of a Live Display Indicator? Does its presence mean that manual voltage testing is no longer necessary?

The core function of a Live Display Indicator is real-time early warning. It extracts signals from the high-voltage circuit via capacitive sensors and provides a visual indication of whether each phase is energized using LEDs. Safety Warning: It serves as a continuous visual status monitor for operators. Crucial Note on Safety Protocols: No, it cannot replace manual voltage testing (verification). According to standard electrical safety procedures, a Live Display is considered a

What is the purpose of the

This is the most critical safety feature of the Live Display Indicator. When the high-voltage side is energized, the internal relay of the indicator will trigger, cutting off the power supply to the interlock circuit.  Logic Function: By interrupting the interlock circuit, the device physically prevents the operation of the earthing switch or the opening of the cabinet doors while the system is live. Forced Safety: This ensures

If the secondary control power (low-voltage power) of the switchgear is lost, can the Live Display Indicator still show the energized status?

Yes, it can. The

Can a 10kV Live Display Indicator be used directly on a 35kV switchgear cabinet?

No, it cannot. Although the display panels may look similar on the outside, the accompanying sensors (capacitive post insulators) are strictly matched according to the specific voltage level. Voltage Matching: The sensors for a 10kV system are designed to extract a specific signal ratio. Using them in a 35kV environment would subject the internal capacitors to excessive voltage stress, leading to insulation breakdown, sensor damage, or even catastrophic failure. Accuracy and Safety: A mismatched sensor will not provide an accurate signal to the display unit, which could result in a false
