Fixed Contact

This static contact is widely used in KYN28 (GZS1) and other withdrawable switchgear as the fixed interface for the circuit breaker compartment. With a lower current rating of 630A and a reduced diameter of 35mm, it is ideally suited for compact switchgear configurations and distribution networks where space efficiency and reliable performance are paramount.

The Fixed Contact (Static Contact) is a critical stationary component within high-voltage switchgear, designed to interface seamlessly with the moving contacts (such as tulip contacts) of a vacuum circuit breaker. Machined from high-purity T2 copper, this contact ensures optimal current transfer with minimal resistive losses.

High Conductivity Material

Precision-machined from solid T2 copper, offering superior electrical and thermal conductivity compared to standard alloys.

Surface: Silver-plated (Ag) for optimal contact reliability.

Applications: Widely used in Vacuum Circuit Breakers (VCBs), GIS, and medium-to-high voltage switchgears.

This static contact is widely used in KYN28 (GZS1) and other withdrawable switchgear as the fixed interface for the circuit breaker compartment. Its robust construction guarantees safe isolation and reliable connection for modern power distribution systems.

Silver-Plated Finish

Manufactured with a mature silver-plating electroplating process to prevent oxidation, reduce contact resistance, and ensure consistent product quality (Optional/Standard).

Surface: Silver-plated (Ag) for optimal contact reliability.

Applications: Widely used in Vacuum Circuit Breakers (VCBs), GIS, and medium-to-high voltage switchgears.

This static contact is widely used in KYN28 (GZS1) and other withdrawable switchgear as the fixed interface for the circuit breaker compartment. With a rated current of 1600A and a 55mm diameter, it is ideally suited for medium-to-large capacity distribution networks, step-up substations, and industrial applications requiring higher power handling capabilities.

Robust Design

Engineered to withstand high levels of short-circuit current and thermal stress without deformation or breakdown.

Surface: Silver-plated (Ag) for optimal contact reliability.

Applications: Widely used in Vacuum Circuit Breakers (VCBs), GIS, and medium-to-high voltage switchgears.

High-Current Series

This static contact is widely used in KYN28 (GZS1) and other withdrawable switchgear as the fixed interface for the circuit breaker compartment. With a rated current of 2000A and a 79mm diameter, it is ideally suited for high-capacity distribution networks, main power transformers, heavy industrial applications, and critical infrastructure requiring robust power handling capabilities.

Surface: Silver-plated (Ag) for optimal contact reliability.

Applications: Widely used in Vacuum Circuit Breakers (VCBs), GIS, and medium-to-high voltage switchgears.

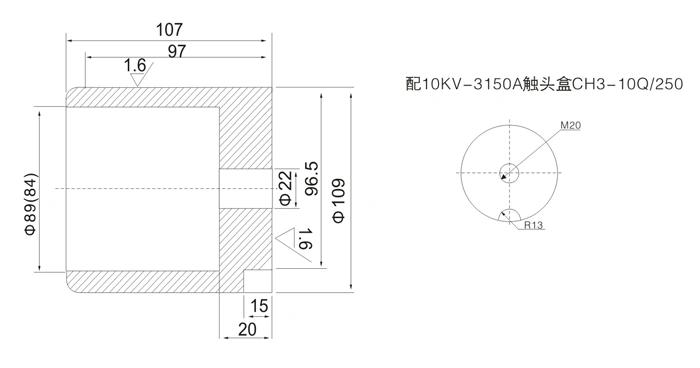

High-Current Series

This static contact is widely used in KYN28 (GZS1) and other high-current withdrawable switchgear as the fixed interface for the circuit breaker compartment. With a rated current of 3150A and a 109mm diameter, it is ideally suited for main incoming feeders, generator outlets, large-scale industrial complexes, data centers, and critical power infrastructure where maximum power handling capacity and minimal temperature rise are essential.

Surface: Silver-plated (Ag) for optimal contact reliability.

Applications: Widely used in Vacuum Circuit Breakers (VCBs), GIS, and medium-to-high voltage switchgears.

High-Current Series

This static contact is specifically designed for high-current withdrawable switchgear (such as KYN28-12/4000A, KYN61-40.5, or generator outlet panels) as the fixed interface for the circuit breaker compartment. With a rated current of 4000A and a 109mm diameter, it is ideally suited for:

Main incoming feeders in large-scale industrial plants

Generator outlets and power station auxiliaries

Electric arc furnace transformer circuits

Hyperscale data centers and critical power infrastructure

Heavy mining and marine applications

Surface: Silver-plated (Ag) for optimal contact reliability.

Applications: Widely used in Vacuum Circuit Breakers (VCBs), GIS, and medium-to-high voltage switchgears.

This contact ensures maximum power handling capacity, minimal temperature rise, and uncompromised reliability for the most demanding electrical environments.
