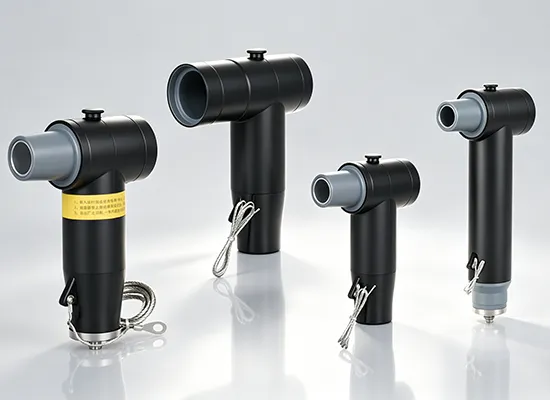

European Cable Termination

No, they are not interchangeable. Front Connector: This is the foundation of the connection system, installed directly onto the switchgear bushing. Rear Connector: This is designed to be installed onto the back of a front connector. This

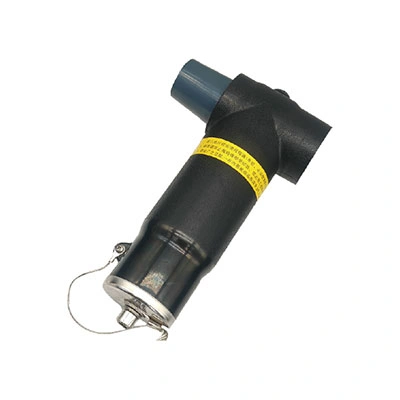

Primarily for overvoltage protection. Compact Protection: Space inside Ring Main Units (RMU) is very limited, making traditional air-insulated arresters difficult to install. Rear-type arresters (such as the HY5W series) plug directly into the end of the cable connector without occupying additional cabinet space. Fully Insulated Safety: The surface of the arrester is fully insulated and sealed (usually with silicone rubber). This ensures safe operation even in humid or contaminated environments, effectively protecting transformers and switchgear from lightning and switching overvoltages.

Before installation, a specialized cleaning agent must be used to thoroughly clean the interface to ensure there are no contaminants. Additionally, a high-quality silicone grease must be applied evenly to ensure a tight fit and to exclude air from the interface, preventing partial discharge.

Theoretically yes, but according to safety regulations, touching during live operation is not recommended. Shielding Principle: High-quality European connectors are wrapped in an outer semi-conductive shielding layer that must be reliably grounded. This ensures that the electrical potential on the surface of the connector remains at zero. Safety Caution: If the grounding wire is poorly connected or the shielding layer is damaged, high voltage may be induced on the surface. Therefore, electrical operating procedures typically require that the equipment be de-energized or confirmed safe with a high-voltage detector before any physical contact is made.

Is it sufficient to consider only the voltage (e.g., 10kV or 35kV) during selection?
