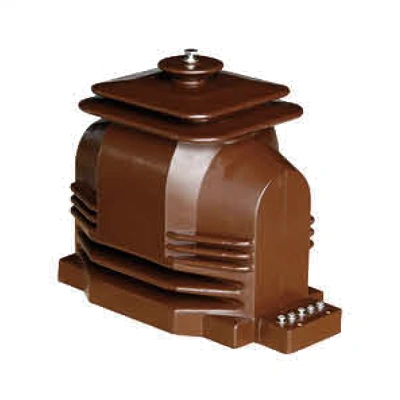

The JDZ9-24 is a high-performance potential transformer (voltage transformer) designed for 24kV electrical systems. It accurately steps down high-voltage inputs to standardized low-voltage outputs, enabling precise power metering, reliable relay protection, and effective grid monitoring.
Suitable for a wide range of applications, including substations, industrial plants, and power distribution networks, this model delivers accurate voltage measurement and consistent long-term performance. Its robust construction enhances the safety and operational efficiency of medium voltage electrical systems.
Epoxy resin cast insulation with fully enclosed structure
Rated insulation level: 24/50/125 kV
Compact and lightweight design for easy installation
High accuracy for metering and stable performance for protection
Compliant with GB and IEC standards
Applications
24kV indoor switchgear and distribution panels
Substation voltage monitoring and metering
Industrial plant power distribution
Relay protection systems in medium voltage networks
