Voltage Transformer for Medium Voltage Systems JDZC-6/10
The JDZC-6/10 is an indoor voltage transformer with epoxy resin cast insulation, designed for 50/60Hz power systems with rated voltages up to 10kV. It provides voltage measurement and serves as a power source for operating mechanisms and control circuits in medium voltage applications.
Rated voltage: 6kV / 10kV | Indoor use
Epoxy resin cast insulation for reliable performance
High-quality silicon steel core for stable operation
Compact and lightweight design for easy installation
Rated insulation level: 12/42/75 kV
Compliant with GB and IEC standards
Applications (Where Is Commonly Used)
Power supply for switchgear operating mechanisms
Voltage measurement and monitoring in 10kV systems
Relay protection and fault detection
Revenue metering and billing
Control circuits in distribution panels
Industrial plant power distribution
Compact substations
Grid automation and SCADA systems

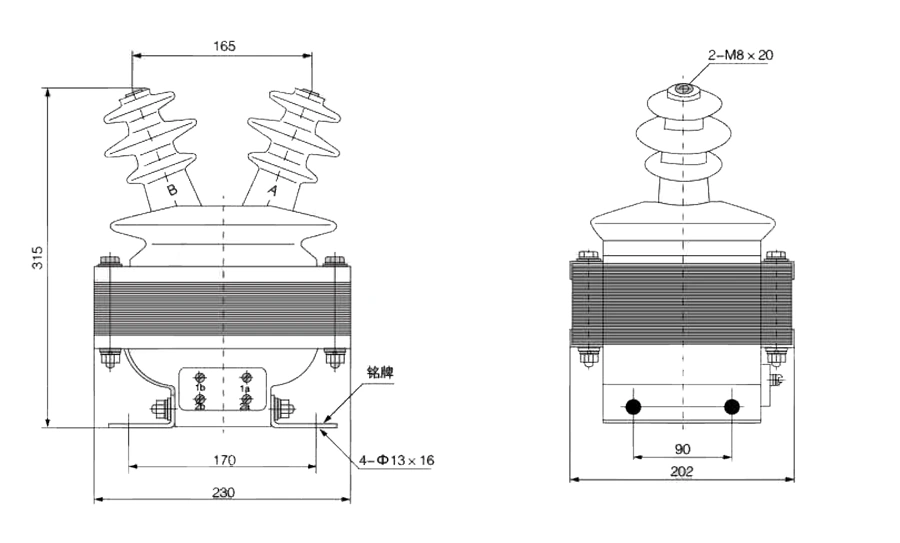

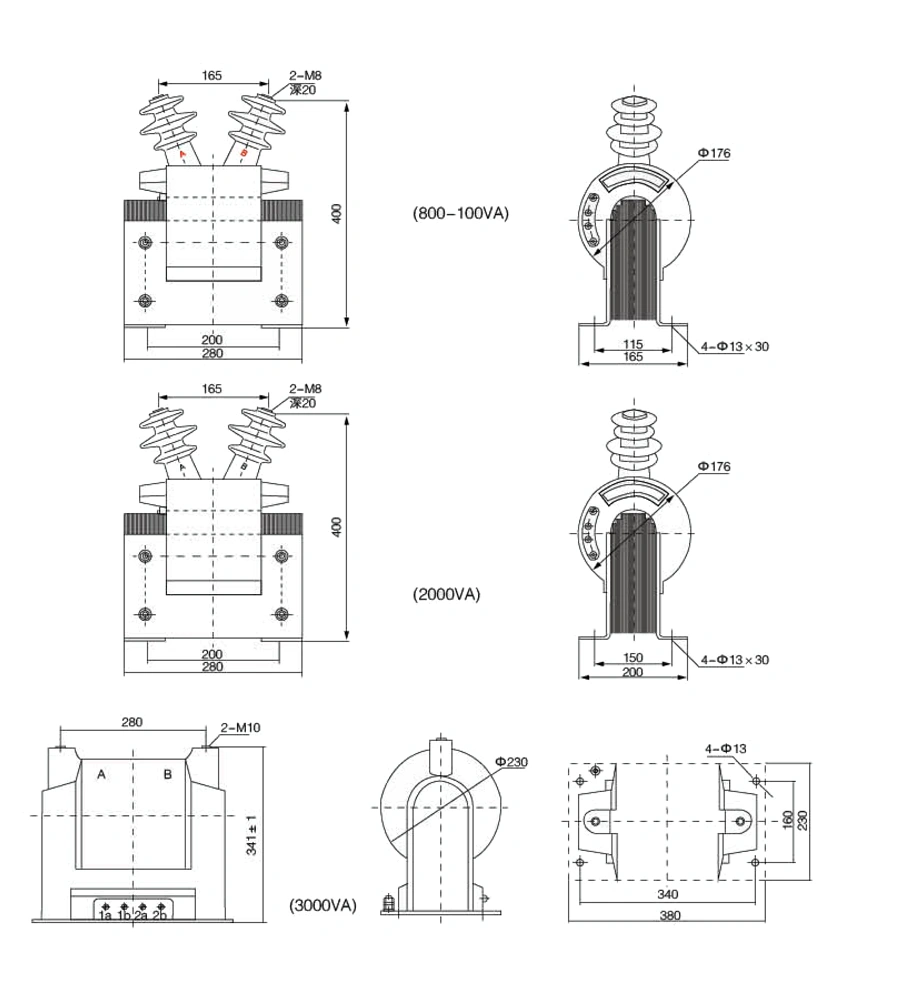

Dimensions

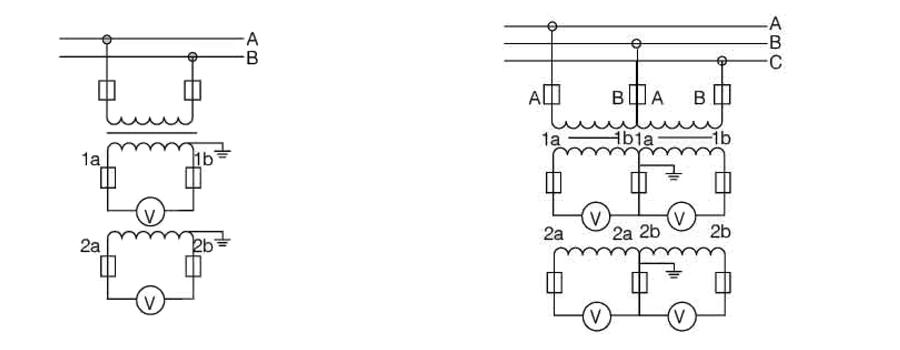

Wiring Diagram
