Rated Voltage: 24kV
Application: Indoor MV Switchgear, 24kV Electrical Installations, Distribution Panels

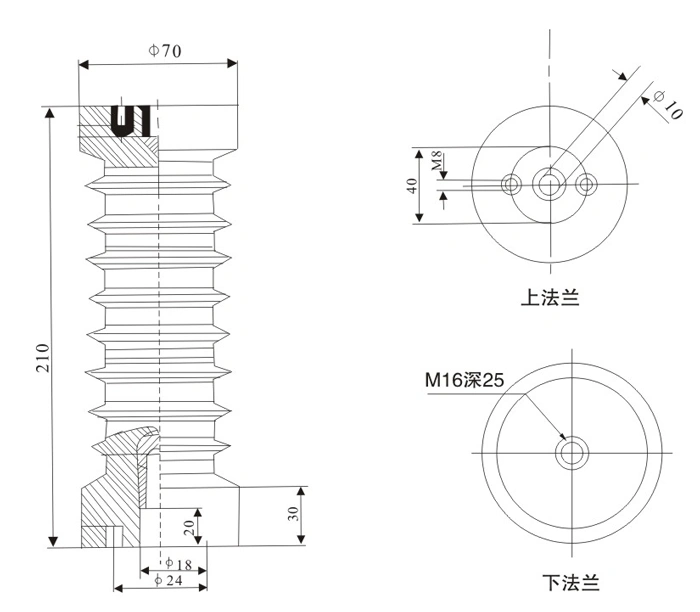

The FUYI ZJ3-24Q 70×210 is a high-quality epoxy resin indoor post insulator designed for 24kV switchgear and electrical installations. With 70mm diameter and 210mm height, this insulator provides reliable electrical insulation and mechanical support for live conductors in medium voltage indoor applications.
High-quality epoxy resin construction
Excellent resistance to pollution and moisture
| Parameter | ZJ3-24Q 70×210 |
|---|---|
| Height | 210 mm |
| Diameter | 70 mm |
| Top Thread | M10 / M12 (optional) |
| Base Thread | M16 |
Quality Assruance
ZJ3-24Q Ø70×210 insulators are produced using Automatic Pressure Gelation (APG) technology with vacuum mixing, ensuring void-free internal structure and consistent quality.
Customization Options
Custom dimensions, thread sizes, and colors are available —Just contact us with your requirements. For technical inquiries, please provide your rated voltage and installation type.
