Rated Voltage: 10kV / 12kV Max
Application: Indoor MV Switchgear, Ring Main Units, Electrical Panels
The FUYI ZJ-10Q series are high-quality epoxy resin indoor post insulators designed for 10kV switchgear and electrical installations. Available in two standard heights (130mm and 140mm) with 65mm diameter, these insulators provide reliable electrical insulation and mechanical support for live conductors.
Void-free epoxy casting (APG technology)
eliminates partial discharge
Optimized shed design
creepage distance ≥230mm for 10kV applications
High mechanical strength
bending load ≥4kN
Interchangeable with standard switchgear designs
Customizable thread configurations available

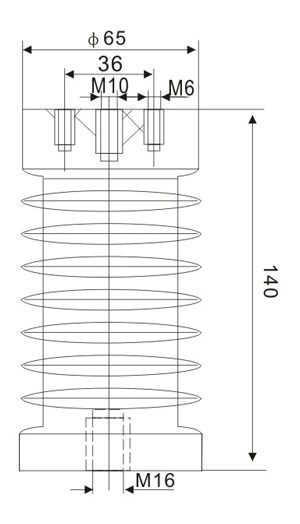

| Parameter | ZJ-10Q Ø65×130 | ZJ-10Q Ø65×140 |
|---|---|---|
| Height | 130 mm | 140 mm |
| Diameter | 65 mm | 65 mm |
| Top Thread | M10 / M12 | M10 / M12 |
| Base Thread | M16 | M16 |
