Rated Voltage: 35kV
Application: Indoor HV Switchgear, 35kV Electrical Installations, Power Distribution Systems
The FUYI ZJ-35Q 145×320/330/360/380 series are high-quality epoxy resin indoor post insulators designed for 35kV switchgear and high voltage electrical installations. With 145mm diameter and multiple height options (320mm, 330mm, 360mm, and 380mm), these insulators provide reliable electrical insulation and mechanical support for live conductors in high voltage indoor applications.
Minimal maintenance – only periodic surface cleaning required
Suitable for temperatures: -40°C to +40°C

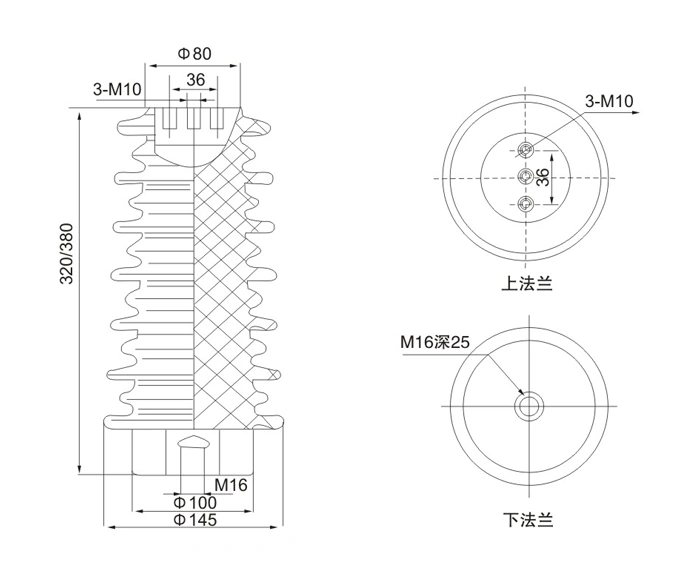

| Parameter | ZJ-35Q 145×320 | ZJ-35Q 145×330 | ZJ-35Q 145×360 | ZJ-35Q 145×380 |
|---|---|---|---|---|
| Height | 320 mm | 330 mm | 360 mm | 380 mm |
| Diameter | 145 mm | 145 mm | 145 mm | 145 mm |
| Top Thread | M12 / M16 (optional) | M12 / M16 (optional) | M12 / M16 (optional) | M12 / M16 (optional) |
| Base Thread | M16 / M20 | M16 / M20 | M16 / M20 | M16 / M20 |
Quality Assruance
FUYI ZJ-35Q insulators are produced using Automatic Pressure Gelation (APG) technology with vacuum mixing, ensuring void-free internal structure and consistent quality.
Customization Options
Custom dimensions, thread sizes, and colors are available —Just contact us with your requirements. For technical inquiries, please provide your rated voltage and installation type.
