Rated Voltage: 24kV
Application: Indoor MV Switchgear, 24kV Electrical Installations, Distribution Panels
The FUYI ZJ-24Q 110×190/210/225 series are high-quality epoxy resin indoor post insulators designed for 24kV switchgear and electrical installations. With 110mm diameter and multiple height options (190mm, 210mm, and 225mm), these insulators provide reliable electrical insulation and mechanical support for live conductors in medium voltage indoor applications.
High mechanical strength for reliable conductor support
Threaded inserts at both ends for easy installation

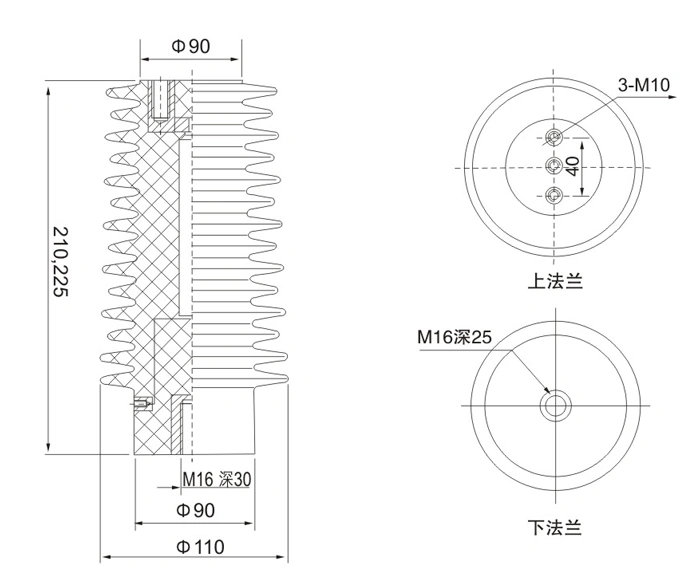

| Parameter | ZJ-24Q Ø110×190 | ZJ-24Q Ø110×210 | ZJ-24Q Ø110×225 |
|---|---|---|---|
| Height | 190 mm | 210 mm | 225 mm |
| Diameter | 110 mm | 110 mm | 110 mm |
| Top Thread | M10 / M12 / M16 (optional) | M10 / M12 / M16 (optional) | M10 / M12 / M16 (optional) |
| Base Thread | M16 | M16 | M16 |
Quality Assruance
FUYI ZJ-24Q insulators are produced using Automatic Pressure Gelation (APG) technology with vacuum mixing, ensuring void-free internal structure and consistent quality.
Customization Options
Custom dimensions, thread sizes, and colors are available —Just contact us with your requirements. For technical inquiries, please provide your rated voltage and installation type.
