Rated Voltage: 12kV
Rated Current: 630A ~ 1250A
Application: PT Truck (Voltage Transformer Truck), Isolating Truck, Withdrawable Switchgear
The FUYI 12kV interconnected insulator is specially designed for PT trucks and isolating trucks in medium voltage withdrawable switchgear. Manufactured from high-quality epoxy resin, this insulator provides reliable electrical insulation and mechanical support for moving contacts in 12kV switchgear applications.
Epoxy resin construction with embedded contacts
Designed specifically for PT and isolating truck applications
Suitable for 630A to 1250A current ratings

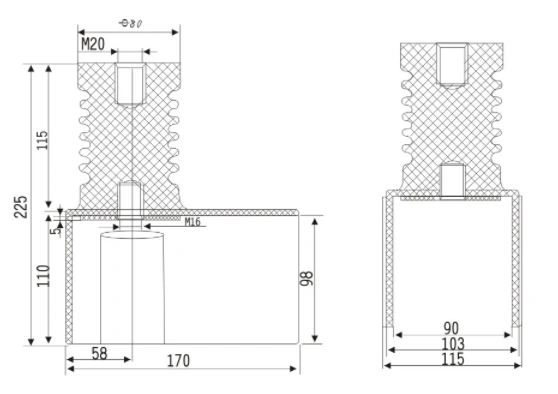

Precision-engineered dimensions for perfect fit in standard switchgear
Excellent electrical and mechanical performance
Threaded inserts for secure mounting
Technical Specification
| Parameter | Value |
|---|---|
| Rated Voltage | 12kV |
| Rated Current | 630A ~ 1250A |
| Power Frequency Withstand Voltage | 42kV (1 min) |
| Lightning Impulse Withstand Voltage | 75kV (peak) |
Quality Assruance
FUYI interconnected insulators are produced using advanced epoxy resin casting technology with strict quality control, ensuring void-free internal structure and consistent performance.
Customization Options
Custom dimensions, thread sizes, and contact configurations are available —Just contact us with your requirements. For technical inquiries, please provide your rated voltage and installation type.
