Engineered with heavy-duty springs for optimal contact force, our flat contacts ensure a secure and efficient connection for medium-voltage draw-out units
Application: Suitable for 10kV (12kV) JYN Series Withdrawable Switchgear

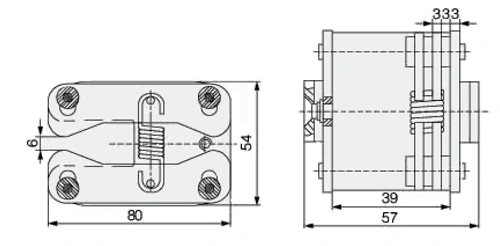

The GC8-630A Spring-Loaded Flat Contact (also known as duckbill flat contact) is a standard conductive component designed for 10kV (12kV) JYN series high-voltage switchgear. Engineered for AC 50Hz power systems with compact insulation requirements, it ensures reliable electrical connection and disconnection in withdrawable circuit breaker applications.
10kV (12kV) JYN series high-voltage switchgear
KYN28-12 medium-voltage switchgear
AC 50Hz power systems
Withdrawable circuit breaker primary connections
Standard medium-voltage power distribution applications requiring a 630A rating
