Engineered with heavy-duty springs for optimal contact force, our flat contacts ensure a secure and efficient connection for medium-voltage draw-out units
Application: Suitable for 10kV (12kV) JYN Series Withdrawable Switchgear

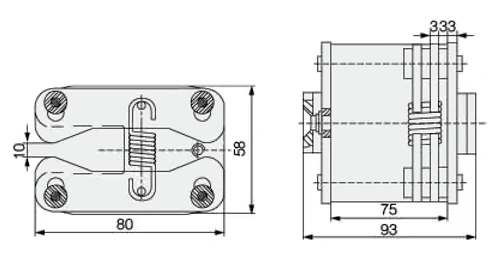

The GC8-1250A Spring-Loaded Flat Contact (also known as duckbill flat contact) is a high-capacity conductive component designed for 10kV (12kV) JYN series high-voltage switchgear. Engineered for AC 50Hz power systems with compact insulation requirements, it ensures reliable electrical connection and disconnection in withdrawable circuit breaker applications requiring higher current handling.
10kV (12kV) JYN series high-voltage switchgear
KYN28-12 medium-voltage switchgear
AC 50Hz power systems
High-capacity withdrawable circuit breaker primary connections
Medium-voltage power distribution applications requiring a 1250A rating at 10kV
