High-Current Series
This static contact is specifically designed for high-current withdrawable switchgear (such as KYN28-12/4000A, KYN61-40.5, or generator outlet panels) as the fixed interface for the circuit breaker compartment. With a rated current of 4000A and a 109mm diameter, it is ideally suited for:
Main incoming feeders in large-scale industrial plants
Generator outlets and power station auxiliaries
Electric arc furnace transformer circuits
Hyperscale data centers and critical power infrastructure
Heavy mining and marine applications
Surface: Silver-plated (Ag) for optimal contact reliability.
Applications: Widely used in Vacuum Circuit Breakers (VCBs), GIS, and medium-to-high voltage switchgears.
This contact ensures maximum power handling capacity, minimal temperature rise, and uncompromised reliability for the most demanding electrical environments.
The Fixed Contact (Static Contact) is a critical stationary component within high-voltage switchgear, designed to interface seamlessly with the moving contacts (such as tulip contacts) of a vacuum circuit breaker. Machined from high-purity T2 copper, this contact ensures optimal current transfer with minimal resistive losses, even under extreme continuous current conditions.
Designed for durability in fixed installations, it provides a stable termination point for busbar or cable connections. As a non-moving part, it offers inherent reliability and resistance to mechanical wear, ensuring long-term structural integrity within the contact box.
High Conductivity Material
Precision-machined from solid T2 copper, offering superior electrical and thermal conductivity compared to standard alloys.
Heavy-Duty Silver-Plated Finish
Manufactured with an enhanced silver-plating electroplating process featuring increased plating thickness (typically >12μm) to prevent oxidation, significantly reduce contact resistance, and ensure consistent product quality under extreme thermal stress.
Robust Design
Engineered to withstand extreme levels of short-circuit current and continuous thermal stress without deformation or breakdown.
Secure Fit

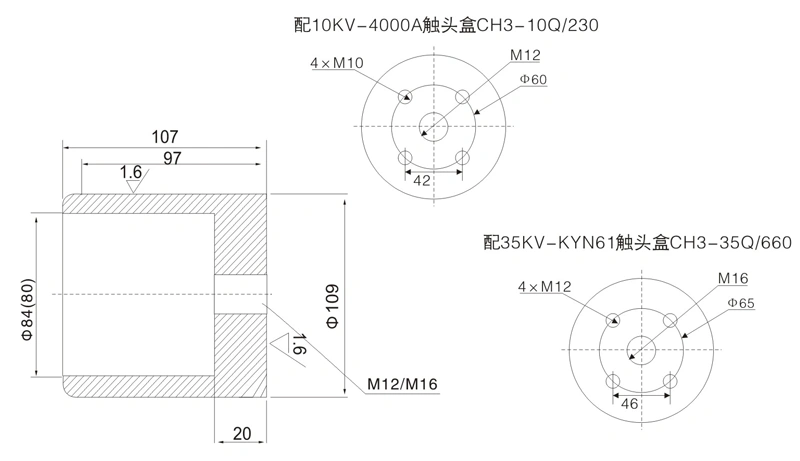

Dimensional accuracy of 109mm diameter with a length of 107mm ensures secure installation and consistent alignment with the moving contact.
This static contact is specifically designed for high-current withdrawable switchgear (such as KYN28-12/4000A, KYN61-40.5, or generator outlet panels) as the fixed interface for the circuit breaker compartment. With a rated current of 4000A and a 109mm diameter, it is ideally suited for:
Main incoming feeders in large-scale industrial plants
Generator outlets and power station auxiliaries
Electric arc furnace transformer circuits
Hyperscale data centers and critical power infrastructure
Heavy mining and marine applications
This contact ensures maximum power handling capacity, minimal temperature rise, and uncompromised reliability for the most demanding electrical environments.
