The LZZBJ9-24KV is a type of indoor medium voltage current transformer designed for reliable performance in 50Hz, 24kV AC power systems.
Versatile Application
Ideal for integration into air-insulated switchgear and other medium voltage distribution equipment.
Service Conditions
Installation: Indoor use only
Ambient Temperature: -15°C to +40°C (daily average not exceeding +30°C)
Altitude: ≤ 1,000 m
Humidity: Average relative humidity ≤ 95% over 24 hours
Pollution Level: Class II
Environment: Free from significant dust, smoke, corrosive gases, vapor, or salt; no severe vibration or impact

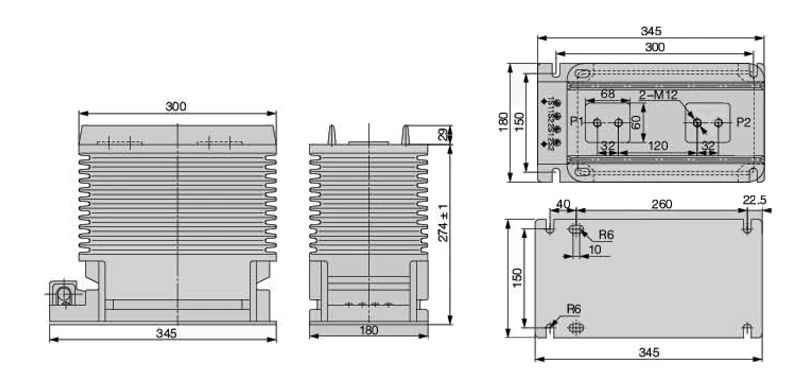

Structural Overview
The transformer is fully cast in epoxy resin, providing a compact and maintenance-free design.
Primary terminals are clearly marked as P1 and P2; secondary terminals are labeled sequentially (e.g., 1S1, 1S2, 2S1, 2S2) for easy identification and wiring.
