Rated Voltage: 40.5kV
Application: High Voltage Switchgear (KYN61 Series), Withdrawable Switchgear, Electrical Connection Systems
The epoxy resin body offers excellent insulation, mechanical strength, and sealing against dust and moisture. The improved shielding design integrates an electric field equalizing layer to reduce partial discharge and enhance insulation performance under 40.5kV. The three-way configuration allows flexible, multi-directional busbar connections for complex switchgear layouts requiring branched electrical paths. Terminals are made of high-conductivity copper with tin or silver plating for stable performance and corrosion resistance.

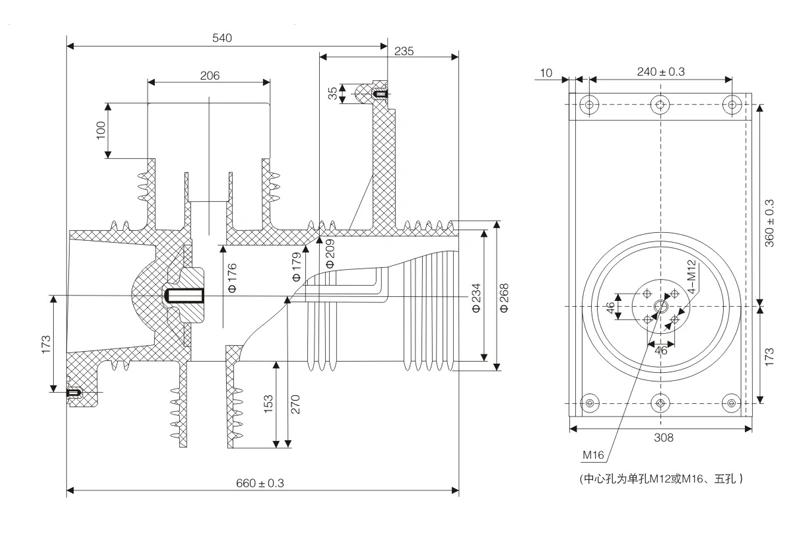

| Model | CH3-40.5kV/660-III (Improved Type) |
|---|---|
| Rated Voltage | 40.5kV |
| Design Type | Three-Way with Shielding Layer |
| Compatible Switchgear | KYN61 Series Withdrawable Switchgear |
| Installation Method | For High Voltage Withdrawable Switchgear |
| Wiring Method | Crimping type |
| Insulation Material | Epoxy resin with integrated shielding |
| Number of Connectors | Three-way configuration |
| Application | Indoor use |
