Rated Voltage: 24kV
Rated Current: 3150A – 4000A
Application: Medium Voltage Switchgear (Withdrawable Type), 24kV High-Current Electrical Connection Systems
The contact box is a key component for 24kV medium voltage switchgear, enabling reliable high-current power transmission between busbars and equipment.
The epoxy resin body offers excellent insulation, sealing, and mechanical strength for long-term reliability in 24kV applications. Terminals are made of high-conductivity copper with enhanced tin or silver plating for stable performance under high current loads. Contacts are precision-engineered from high-strength copper alloy, designed for high-current applications up to 4000A, providing superior conductivity, wear resistance, and high temperature tolerance.

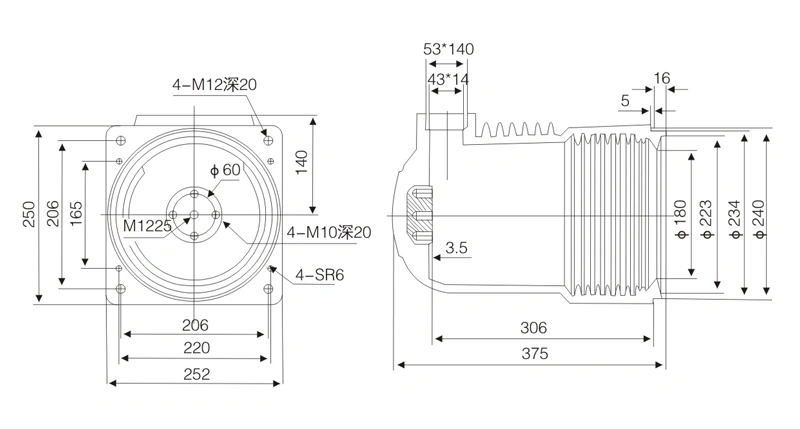

| Model | CH3-24kV/252 |
|---|---|
| Rated Voltage | 24kV |
| Rated Current | 3150A – 4000A |
| Installation Method | For Medium Voltage Withdrawable Switchgear |
| Wiring Method | Crimping type |
| Insulation Material | Epoxy resin |
| Number of Connectors | As per standard configuration |
| Application | Indoor use |
