Rated Voltage: 12kV
Rated Current: 2500A – 3150A
Application: Medium Voltage Switchgear (Withdrawable Type), High-Current Electrical Connection Systems
The contact box is a key component in medium voltage switchgear, enabling reliable power transmission in high-current distribution systems.
The epoxy resin body offers excellent insulation, mechanical strength, and sealing against dust and moisture for long-term reliability under high-current conditions. Terminals are made of high-conductivity copper with enhanced tin or silver plating for stable performance and corrosion resistance. Contacts are precision-engineered from high-strength copper alloy with an optimized design, providing superior conductivity, wear resistance, and high temperature tolerance.

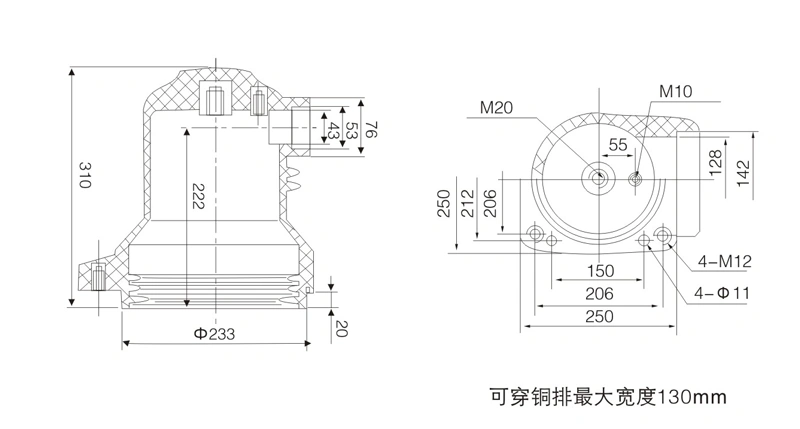

| Model | CH3-10Q/250 |
|---|---|
| Rated Voltage | 12kV (max) |
| Rated Current | 2500A – 3150A |
| Installation Method | For Medium Voltage Withdrawable Switchgear |
| Wiring Method | Crimping type |
| Insulation Material | Epoxy resin |
| Number of Connectors | As per standard configuration |
| Application | Indoor use |
