Rated Voltage: 12kV
Rated Current: 1250A
Application: Medium Voltage Switchgear (Withdrawable Type), Electrical Connection Systems
The contact box is a key electrical connection device for medium voltage switchgear, enabling reliable power transmission between busbars and equipment.
The epoxy resin body provides excellent insulation, mechanical strength, and sealing against dust and moisture. Terminals are made of high-conductivity copper with tin or silver plating for stable performance and corrosion resistance. Contacts are precision-engineered from high-strength copper alloy, providing superior conductivity, wear resistance, and high temperature tolerance.

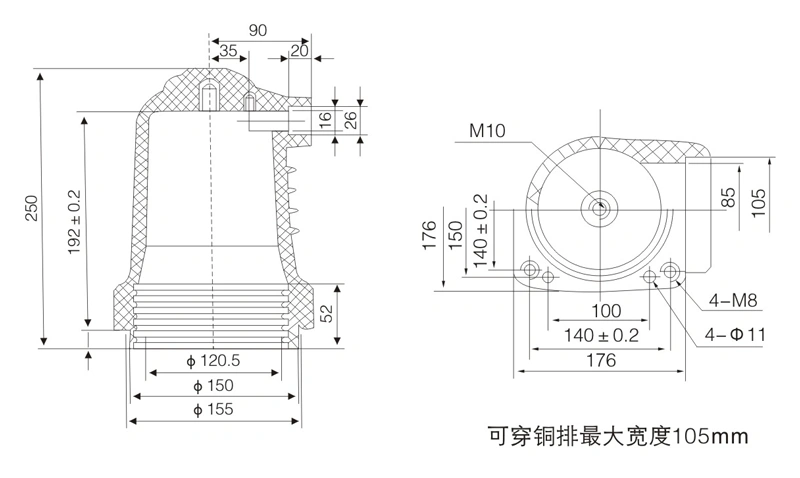

| Model | CH3-10Q/180 |
|---|---|
| Rated Voltage | 12kV (max) |
| Rated Current | 1250A |
| Installation Method | For Medium Voltage Withdrawable Switchgear |
| Wiring Method | Crimping type |
| Insulation Material | Epoxy resin |
| Number of Connectors | As per standard configuration |
| Application | Indoor use |
