Rated Voltage: 12kV
Rated Current: 630A – 1250A
Application: Medium Voltage Switchgear ( withdrawable type), Electrical Connection Systems
The contact box is a key electrical connection device used in medium-voltage switchgear, enabling reliable power transmission between busbars and equipment.
The epoxy resin body offers strong insulation, mechanical strength, and effective sealing against dust and moisture.
Terminals are made of high-conductivity copper with tin or silver plating for excellent conductivity and corrosion resistance.
Precision-engineered contacts use high-strength copper alloy, ensuring reliable connection, wear resistance, and stable performance under high temperatures.

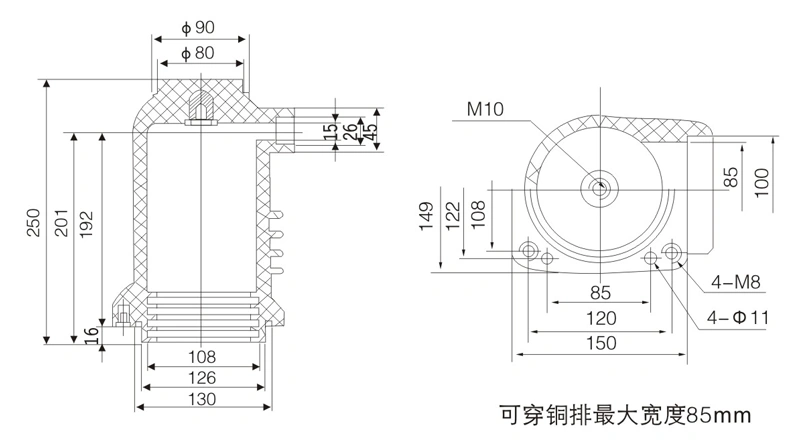

| Model | CH3-10Q/150 |
|---|---|
| Rated Voltage | 12kV (max) |
| Rated Current | 630A – 1250A |
| Installation Method | For Medium Voltage Withdrawable Switchgear |
| Wiring Method | Crimping type |
| Insulation Material | Epoxy resin |
| Number of Connectors | As per standard configuration |
| Application | Indoor use |
